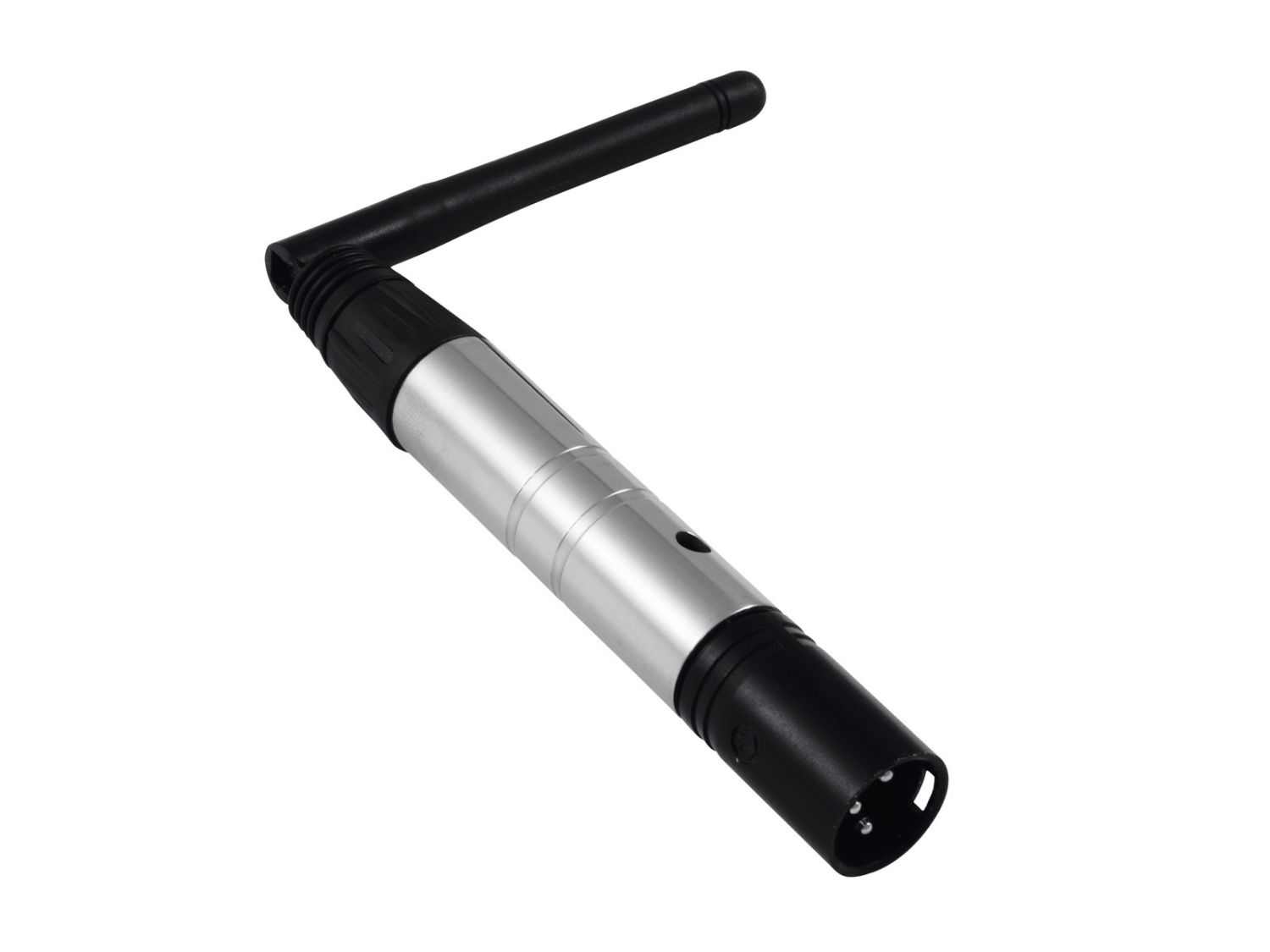

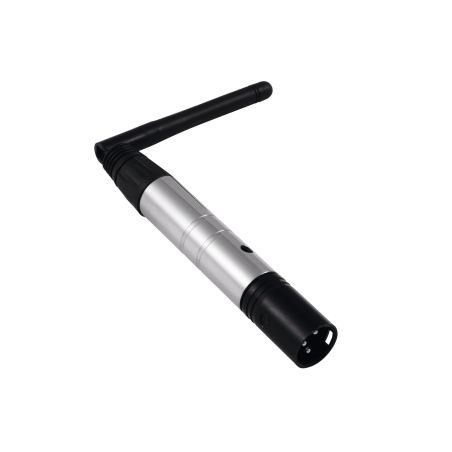

Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
Package contents

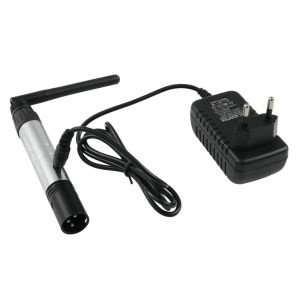

- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 1 A |
IP classification: | IP20 |
Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
DMX channels: | Output 512 |
DMX input: | 1 x 3-pin XLR (M) |
Control: | QuickDMX; DMX; plug and play |
Carrier frequency: | 2,4 GHz |
Modulation: | GFSK |
Parallel mode: | Max. 6 transmitter |
Range: | Range up to 400m |
Color: | Silver |
Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
Weight: | 150 g |
