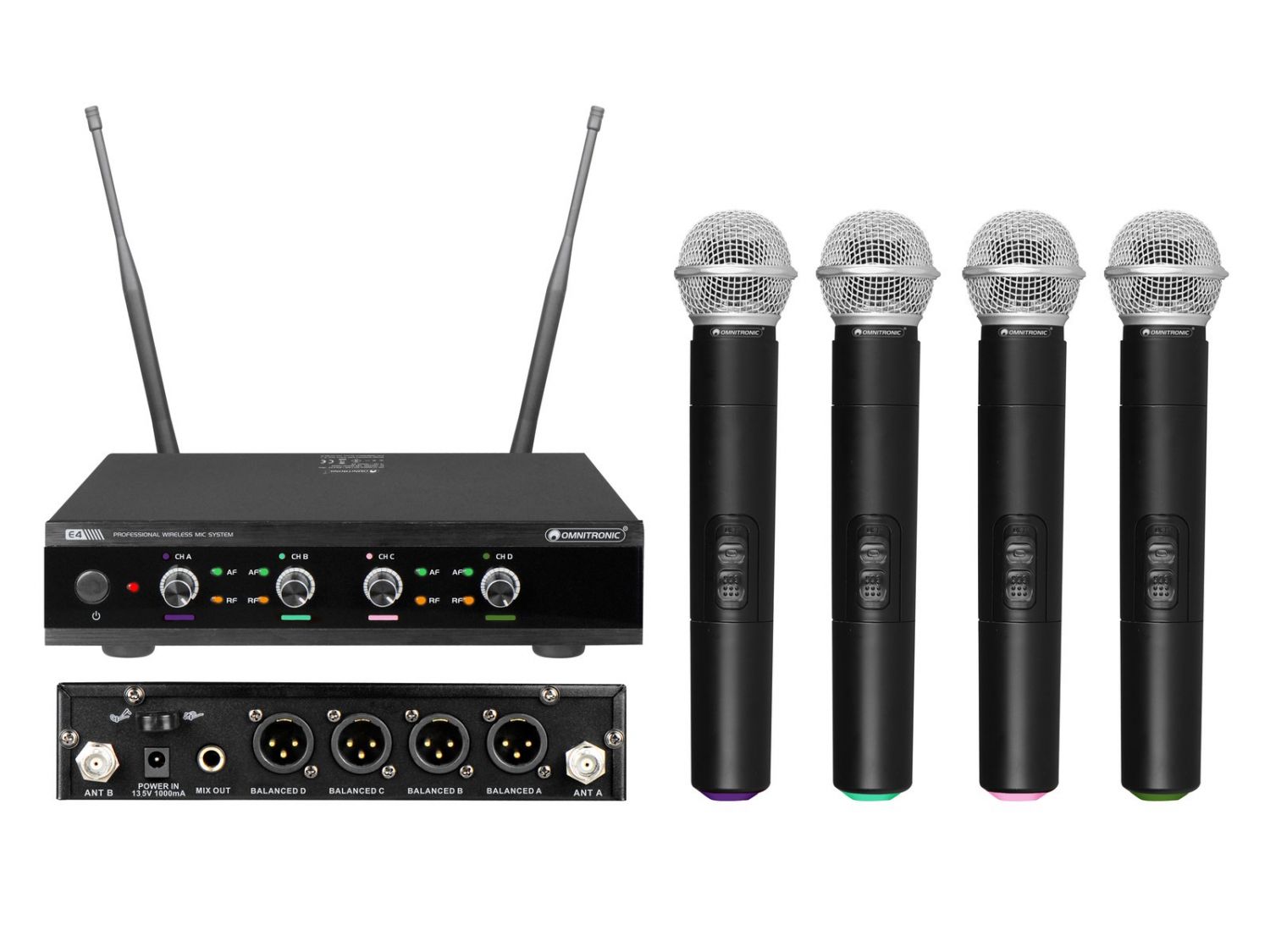

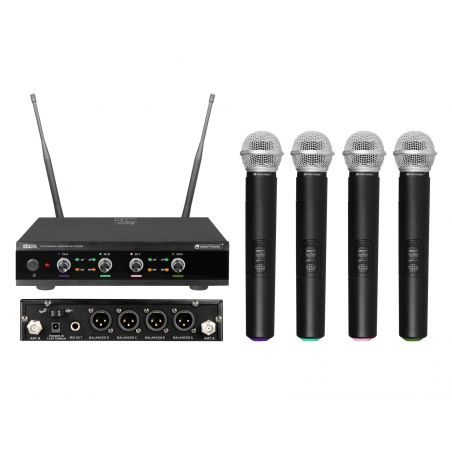

OMNITRONIC UHF-E4 Wireless Mic System 518.7/520.9/523.1/525.3MHz - system bezprzewodowy wokalny
1 245,00 zł
Brutto
Produkt dostępny
wysyłka 7 dni roboczych
magazyn wysyłkowy
Znalazłeś produkt taniej?
Tutaj negocjuj cenę
Tutaj negocjuj cenę
Zwrot do 14 dni
od daty zakupu
od daty zakupu
Darmowa wysyłka
już od 399 zł
już od 399 zł
License-free 4-channel wireless microphone system
- 4-channel receiver and 4 hand-held microphones with UHF PLL technology
- Parallel operation of up to 12 transmission channels is possible without any interference
- Easy handling
- 4 separate channels with volume controls and LEDs for carrier signal and audio signal
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Microphones with color indication
- UHF 518 - 548 MHz License-free and approved in large parts of europe
- Operating range up to 60m with line-of-sight
Receiver
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Microphone
- Polar pattern: Cardioid
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 3 x mounting bracket, 4 x foot, 13 x screw, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Type: | Wireless set |
| Frequency band: | UHF 518 - 548 MHz |
| Carrier frequency: | 518,7; 520,9; 523,1; 525,3 |
| Frequency selection: | 4 fixed frequencies |
| Modulation: | FM |
| Range: | Range up to 60m with line-of-sight |
| Weight: | 2,16 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 13,5 V DC 150 mA |
| Power consumption: | 6 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 4 |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,1 % at 1 kHz |
| Housing color: | Black |
| Control elements: | Power switch, level control |
| Connections: | Output: line via 1 x 6.3 mm plug (unbal.) Output: Microphone via 4 x 3-pin XLR |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Weight: | 1 kg |
| Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 20000 Hz |
| Housing color: | Black |
| RF power output: | 10 mW |
| Switch: | Mute control |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 25 cm Diameter: Ø 5,2 cm |
| Weight: | 205 g |
