Master outputs with 3 way tone control
Special front input for phone/mp3 devices
Zone control for 3 balanced outputs
1 Mic, 7 Line, 2 Phono inputs

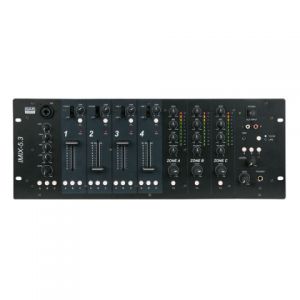

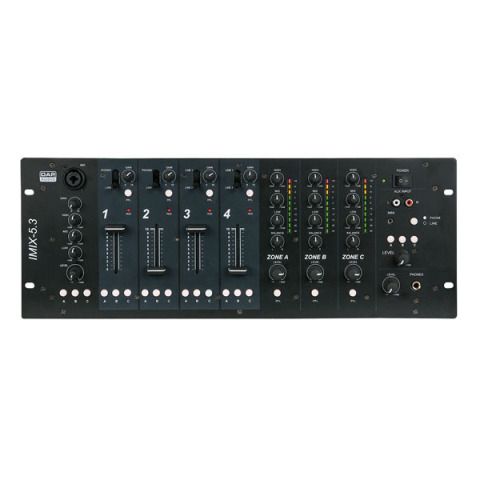

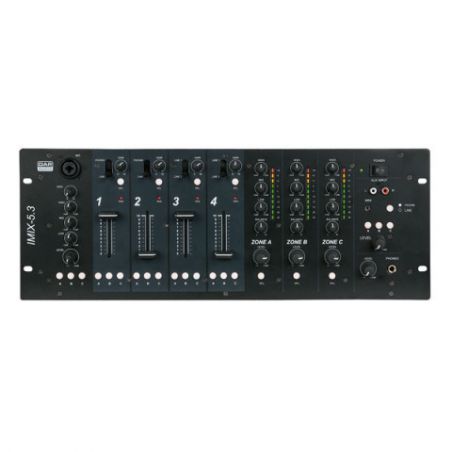

The IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.
Input channels: 1 x Microphone, combo XLR/Jack
7 x Line, RCA
2 x Phono, RCA
1 x Phone, 3,5mm jack
Output channels: 3 x Master (Balanced), XLR/RCA
1 x Headphones, 6.3mm Jack
Master EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB
Mic EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB
Frequency response: 20Hz - 20Khz
T.H.D.: <0.05%
Dimensions: 481 x 176 x 89 mm (LxHxD)
Powersupply: 230V AC, 50Hz
Powerconsumption: 15Watt
Weight: 3.4 Kg
Special front input for phone/mp3 devices
Zone control for 3 balanced outputs
1 Mic, 7 Line, 2 Phono inputs
The IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.
Input channels: 1 x Microphone, combo XLR/Jack
7 x Line, RCA
2 x Phono, RCA
1 x Phone, 3,5mm jack
Output channels: 3 x Master (Balanced), XLR/RCA
1 x Headphones, 6.3mm Jack
Master EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB
Mic EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB
Frequency response: 20Hz - 20Khz
T.H.D.: <0.05%
Dimensions: 481 x 176 x 89 mm (LxHxD)
Powersupply: 230V AC, 50Hz
Powerconsumption: 15Watt
Weight: 3.4 Kg
